Klimaire / Klimaire KIWQ-KOIQ DIY

Klimaire DIY 12k R-454B 230V Mini-Split

Certified capacity
12,000 BTU/h[1]
SEER2
24 SEER2[10]
Heating floor
-13 F[1]
Voltage
230 V[1]
Install path
DIY install

The 230V take on the 12K DIY head nudges efficiency to the top of the range at SEER2 24, with EER2 13 and HSPF2 10 on R-454B. Cold-climate designated, it heats 12,600 BTU at 47F, 10,000 BTU at 17F, and 9,100 BTU at 5F. Precharged quick-connect line sets make it a self-install unit for a homeowner running a dedicated 230V circuit.

1 zoneDIY installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

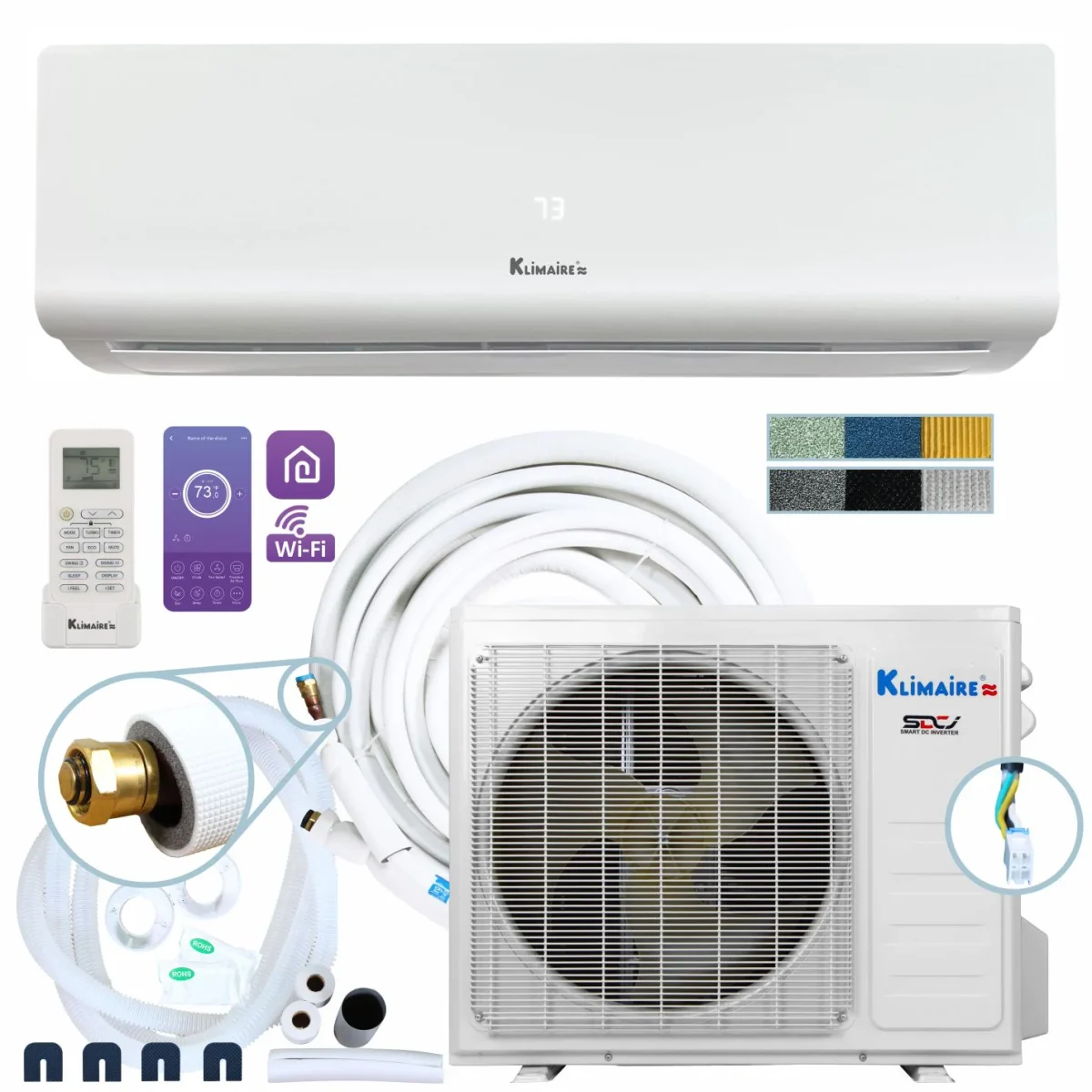

Klimaire KIWQ-KOIQ DIY 12,000 BTU R-454B 208-230V (KIWQ12H2-45T / KOIQ12H2-45T) mini-split heat pump indoor wall unit and outdoor condenser kit

Image: Klimaire

Data completeness: 98%
Last sourced
Aug 17, 2026

SplitAtlas score

8.6 / 10

Methodology
Cooling efficiencyAbove average

(24.0 SEER2) among 12k systems

Heating efficiencyBelow average

(10.0 HSPF2) among 12k systems

Cold-weather performanceAbove average

(72.2% heat retained at 5F; -13 F heating floor) among 12k systems

NoiseTop 10%

(-46 dBA indoor min / 52 dBA outdoor) among 12k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Installation accessibilityTop quartile

(DIY-marketed; 25 ft precharged; 25 ft included line set) across the catalogue

Feature setTop 10%

(8 verified features) across the catalogue

Documentation & partsBottom quartile

(9 manuals; 51 error-code rows) across the catalogue

Key ratings

Rated cooling

12,000BTU/h[1]

Rated heating

12,600BTU/h[1]

Best-fit use cases

Best for a bedroom or living space in a cold climate where a 230V circuit is available and the owner wants top-tier efficiency without installer labor.

Where this system ranks

Buyer review snapshot

Best for / skip if

Best for

  • High-efficiency shortlists; SEER2 is 24.

Install difficulty

DIY install path, electrical work likely
  • Electrical: 230V; MCA 11 A; breaker/fuse 15 A.
  • Line set: Quick-connect line connections; precharged 25 ft; included 25 ft; max 49 ft.

Alternatives

Availability and price context

We could not verify a current retail price for this model. We could not find a published consumer price for this model when we last checked on 2026-08-17.

Source date

Model data sourced
Aug 17, 2026
Page reviewed
Jul 22, 2026
Source-backed records
12
Newest source retrieved
Aug 17, 2026

Warranty tiers

Warranty: 3 years parts as standard; 5 years parts and 7 years compressor if registered residential use within 45 days.

Review methodology

Strengths

  • SEER2 24 is the efficiency leader of this group, paired with a flat heating curve that holds 9,100 BTU at 5F.
  • The DIY line set removes the vacuum pump and refrigerant handling from install, and the 230V feed gives steady voltage for the larger draw.
  • Cold-climate designation plus HSPF2 10 make it a legitimate primary heat source in a cold zone at a value price.

Weaknesses

  • Not ENERGY STAR certified, and buyers lean on a smaller distributor and dealer network than premium brands offer.
  • Self-installation puts commissioning and warranty responsibility on you, and A2L R-454B line sets need careful routing.

Climate suitability

Minimum heating ambient
-13 F[1]
Rated heating at 5F
9,100 BTU/h[9]
Rated heating at 17F
10,000 BTU/h[8]
Rated heating at 47F
12,600 BTU/h[1]

Specifications

Show
Manufacturer
Klimaire
Brand
Klimaire
Product line
Klimaire KIWQ-KOIQ DIY
Model number
KIWQ12H2-45T indoor / KOIQ12H2-45T outdoor
Indoor unit model
KIWQ12H2-45T
Outdoor unit model
KOIQ12H2-45T
Number of zones
1
Max indoor units
not published
Rated cooling capacity
12,000 BTU/h[1]
Rated heating capacity
12,600 BTU/h[1]
Voltage
230 V[1]
MCA
11 A[1]
Maximum fuse or breaker size
15 A[1]
Breaker needed
not published
SEER2
24 SEER2[10]
EER2
13 EER2[5]
HSPF2 (Region 4)
10 HSPF2[7]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
2.1 COP[4]
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
5 F[1]
Maximum outdoor temperature
131 F[1]
Indoor noise range
30-46 dB(A)[1]
Outdoor noise rating
52 dBA[1]
Indoor weight
23.1 lb[1]
Outdoor weight
58.4 lb[1]
Refrigerant
R-454B[1]
Refrigerant charge
not published
Manufacturer coverage
550 sq ft[1]
Line-set size
1/4 in liquid / 3/8 in suction
Included line-set length
25 ft[1]
Maximum line-set length
49 ft[1]
Max line set per indoor
not published
Maximum elevation difference
33 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
Not ENERGY STAR certified[6]
AHRI certification number
218067069[3]
Warranty
Standard: 3 yr parts (base residential coverage); Best case: 5 yr parts / 7 yr compressor (registered residential use within 45 days). DIY Mini-Split Systems: 5 years parts / 7 years compressor when registered for residential use within 45 days; base coverage is 3 years parts; commercial use is 3 years parts and compressor.
Install path
DIY install
Retail price
We could not find a published consumer price for this model when we last checked on 2026-08-17.
Available retailers
not published
Manual links
AHRI public directory record 218067069, Klimaire KIWQ-KOIQ DIY brochure, ENERGY STAR exact check 218067069, KIWQ/KOIQ 2026 Installation and Users Manual, Klimaire mini-split wall-mount collection, 12,000 BTU KIWQ-KOIQ DIY Series Do-It-Yourself High Wall-Mounted Ductless Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect Kit - 208-230V, Klimaire KIWQ-KOIQ DIY product page quick-connect documentation, HVACDirect exact Klimaire offer check klimaire-kiwq-koiq-diy-12k-r454b-230v, Klimaire warranty information
Specification sheet
not published
Last sourced date
Aug 17, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
11 A[1]
Breaker needed
not published
Maximum breaker size
15 A[1]
Maximum fuse size
15 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
16 AWG, 4-conductor connection wiring[1]

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
3/8 in[1]
Line connection type
Quick-connect line connections[2]
Precharged length
25 ft[1]
Included line-set length
25 ft[1]
Maximum line-set length
49 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
32.28 x 12.05 x 7.68 in[1]
Outdoor dimensions
31.89 x 12.01 x 21.61 in[1]
Indoor weight
23.1 lb[1]
Outdoor weight
58.4 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Klimaire KIWQ-KOIQ DIY 12,000 BTU R-454B 208-230V (KIWQ12H2-45T / KOIQ12H2-45T) myself, or do I need a pro?
Klimaire KIWQ-KOIQ DIY 12,000 BTU R-454B 208-230V (KIWQ12H2-45T / KOIQ12H2-45T) is sold as a DIY-installable system with a pre-charged 25 ft line set, so no refrigerant handling or vacuum pump is required for a standard install. The electrical circuit is the part that is not DIY: plan on a licensed electrician for the dedicated circuit, and check whether your local permit office requires a permit for the install.
Will the Klimaire KIWQ-KOIQ DIY 12,000 BTU R-454B 208-230V (KIWQ12H2-45T / KOIQ12H2-45T) keep heating in a cold winter?
The manufacturer publishes 9,100 BTU/h of heating output at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Klimaire KIWQ-KOIQ DIY 12,000 BTU R-454B 208-230V (KIWQ12H2-45T / KOIQ12H2-45T) need?
Published electrical requirements: 230 V voltage, 11 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 49 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Klimaire KIWQ-KOIQ DIY 12,000 BTU R-454B 208-230V (KIWQ12H2-45T / KOIQ12H2-45T) carry?
The manufacturer publishes these warranty tiers: Standard: 3 yr parts (base residential coverage); Best case: 5 yr parts / 7 yr compressor (registered residential use within 45 days). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
