Will the Mitsubishi Electric M-Series FS 12k 230V (MSZ-FS12NA / MUZ-FS12NAH) keep heating in a cold winter?

Rated heating operation extends down to -13 F. Match that published heating floor against your climate's design temperature - below the low-ambient rating, output can fall off or the system can pause to protect itself.

What electrical circuit does the Mitsubishi Electric M-Series FS 12k 230V (MSZ-FS12NA / MUZ-FS12NAH) need?

Published electrical requirements: 208/230V voltage, 10 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.

How far can the outdoor unit be from the indoor head?

The published maximum line-set length is 65 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.

What warranty does the Mitsubishi Electric M-Series FS 12k 230V (MSZ-FS12NA / MUZ-FS12NAH) carry?

The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation); Registered: 10 yr parts / 10 yr compressor (owner-occupied residence registered within 90 days of installation); Program: 12 yr parts / 12 yr compressor (owner-occupied residence installed and registered by a Diamond Contractor within 90 days). Score uses Registered. Additional published terms are shown for reference and not counted in the score.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Mitsubishi Electric / M-Series FS

Mitsubishi M-Series FS 12k 230V Mini-Split

Certified capacity: 12,000 BTU/h[1]
SEER2: 26.3 SEER2[2]
Heating floor: -13 F[1]
Voltage: 208/230V[1]
Install path: Professional install

The M-Series FS 12k pairs 1 ton of capacity with SEER2 26.3, EER2 13.8, and an HSPF2 of 10.4, rated to keep heating to -13F. It is the efficiency-first choice in Mitsubishi's premium single-zone line for a larger room, with the brand's usual dealer support and documentation behind it.

1 zoneProfessional installCurrent

Need this installed?

Get installation quotes

Error Codes

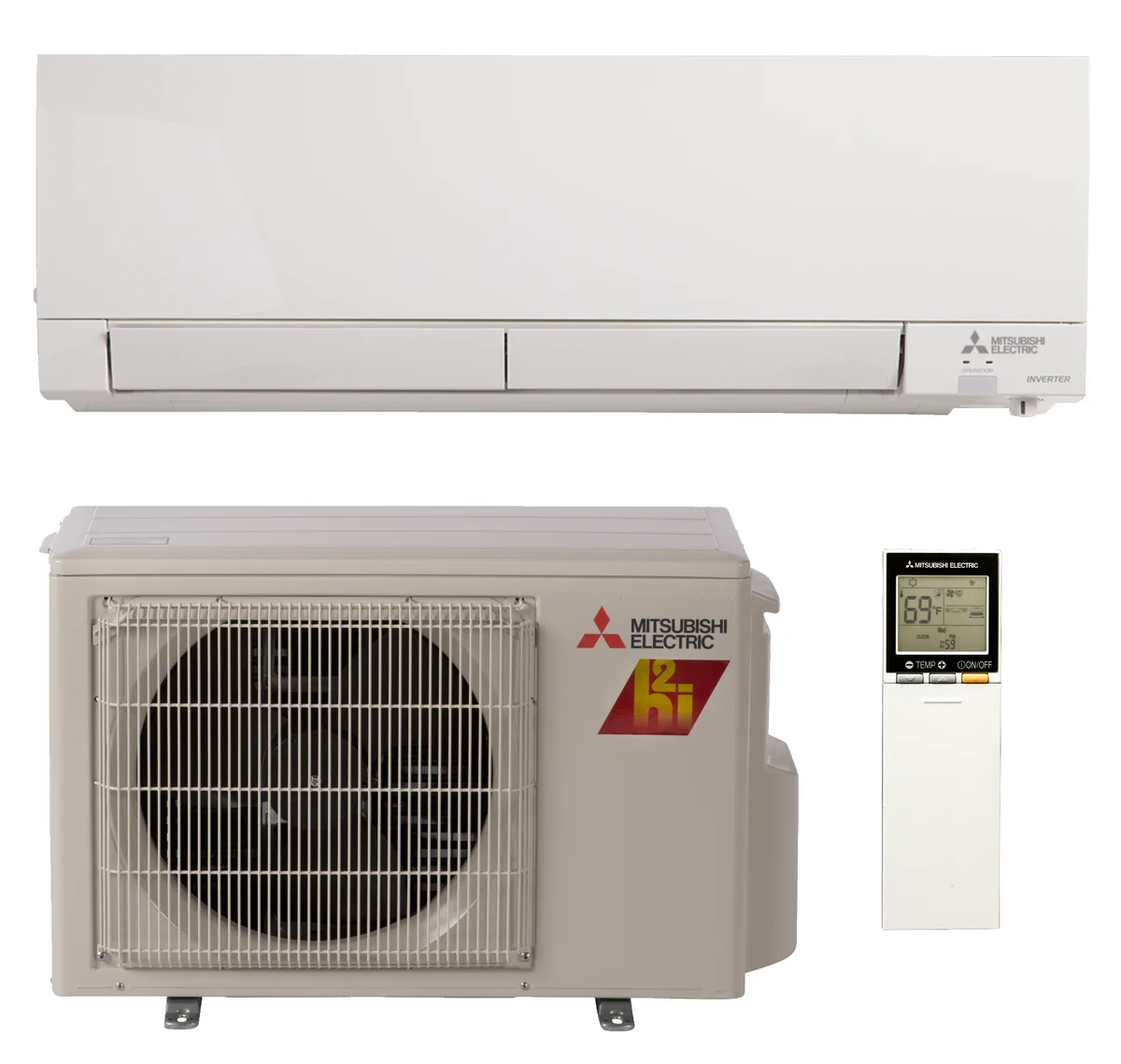

Mitsubishi Electric M-Series FS 12k mini-split heat pump indoor wall unit, outdoor condenser, and remote

Image: HVACDirect

Data completeness: 100%

Last sourced: Jul 20, 2026

SplitAtlas score

8.8 / 10

Methodology

Cooling efficiencyTop 10%

(26.3 SEER2) among 12k systems

Heating efficiencyTop 10%

(10.4 HSPF2) among 12k systems

Cold-weather performanceBottom quartile

(17F rated capacity: 61.5% of the 47F rating; -13 F heating floor) among 12k systems

NoiseAbove average

(21 dBA indoor min / 51 dBA outdoor) among 12k systems

WarrantyTop quartile

(10 yr parts / 10 yr compressor) across the catalogue

Feature setBottom quartile

(1 verified feature) across the catalogue

Documentation & partsTop quartile

(6 manuals; spec sheet; parts channel) across the catalogue

Not evaluated

Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote

Key ratings

Rated cooling

12,000BTU/h[1]

Rated heating

12,300BTU/h[1]

Buyer review snapshot

Best for / skip if

Best for

Top efficiency shortlists; SEER2 is 26.3.

Install difficulty

Professional install

Electrical: 208/230V; MCA 10 A; breaker/fuse 15 A.
Line set: connection type not sourced; precharged 25 ft; max 65 ft.

Alternatives

Blueridge XS6 Max Efficiency 12,000 BTU R-454B 208/230V (BXS6A12WM0 / BXS6A12UC0)
9.0 score / 12k / SEER2 29.4 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,979.00, checked Jul 24, 2026
Senville ELITE 12,000 BTU R-454B 208/230V (SENE-12EL-IHH / SENE-12EL-OH)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,699.99, checked Jul 24, 2026
ACiQ Extreme 12,000 BTU R-454B 208/230V (ACIQ-12W-HH-MD / ACIQ-12ZPL-HP230C)
8.9 score / 12k / SEER2 25.4 / -22 F heating floor / 230V
Exact destination at HVACDirect: $1,649.99, checked Jul 26, 2026

Availability and price context

This system is sold through dealers, so its price comes as an installed quote that depends on your home. Get installation quotes to price it.

Source date

Model data sourced: Jul 20, 2026
Page reviewed: Jul 20, 2026
Source-backed records: 4
Newest source retrieved: Sep 12, 2026

Warranty tiers

Base: 5 yr parts / 7 yr compressor - licensed HVAC contractor installation
Registered: 10 yr parts / 10 yr compressor - owner-occupied residence registered within 90 days of installation
Program: 12 yr parts / 12 yr compressor - owner-occupied residence installed and registered by a Diamond Contractor within 90 days

The score uses Registered. Additional published terms are shown for reference and not counted in the score.

Review methodology

Model context

Structured ratings: Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: R-410A. Minimum heating ambient: -13 F.

Strengths

SEER2 26.3 with HSPF2 10.4 - efficient through both the cooling and heating seasons.
Rated heating operation down to -13F.
Mitsubishi dealer network, documentation, and reliability reputation.

Weaknesses

Premium price and professional dealer installation required.
Heating tapers in deep cold (about 7,560 BTU at 17F) - size it to the room, not as a primary cold-climate heater for a large space.

Climate suitability

Minimum heating ambient: -13 F[1]
Heating capacity at −13°F: 11,000 BTU/h[3]
Certified heating at 5F: not published
Maximum heating at 5F (manufacturer): 14,690 BTU/h[1]
Rated heating at 17F: 7,560 BTU/h[1]
Rated heating at 47F: 12,300 BTU/h[1]

Specifications

Show

Manufacturer: Mitsubishi Electric
Brand: Mitsubishi Electric
Product line: M-Series FS
Model number: MSZ-FS12NA-U1 indoor / MUZ-FS12NAH-U1 outdoor
Indoor unit model: MSZ-FS12NA-U1
Outdoor unit model: MUZ-FS12NAH-U1
Number of zones: 1
Max indoor units: not published
Rated cooling capacity: 12,000 BTU/h[1]
Rated heating capacity: 12,300 BTU/h[1]
Voltage: 208/230V[1]
MCA: 10 A[1]
Maximum fuse or breaker size: 15 A[1]
Breaker needed: not published
SEER2: 26.3 SEER2[2]
EER2: 13.8 EER2[2]
HSPF2 (Region 4): 10.4 HSPF2[2]manufacturer published: 11.1 HSPF2
HSPF2 (Region 5): not published
COP: not published
COP at 47F: 4.24 COP[1]
COP at 5F: 2.41 COP[1]
Minimum outdoor heating temperature: -13 F[1]
Minimum outdoor cooling temperature: 14 F[1]
Maximum outdoor temperature: 115 F[1]
Indoor noise range: cooling 21-24-29-36-44; heating 21-28-32-38-43[1]
Outdoor noise rating: 51 dBA[1]
Indoor weight: 29 lb[1]
Outdoor weight: 84 lb[1]
Refrigerant: R-410A[1]
Refrigerant charge: 41 oz[1]
Manufacturer coverage: not published
Line-set size: 1/4 in liquid / 3/8 in suction
Included line-set length: Line set supplied by the installer
Maximum line-set length: 65 ft[1]
Max line set per indoor: not published
Maximum elevation difference: 40 ft[1]
Max height between indoor units: not published
Wi-Fi support: supported[1]
Energy Star status: ENERGY STAR certified[1]
AHRI certification number: 209832204[2]
Warranty: Base: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation); Registered: 10 yr parts / 10 yr compressor (owner-occupied residence registered within 90 days of installation); Program: 12 yr parts / 12 yr compressor (owner-occupied residence installed and registered by a Diamond Contractor within 90 days). Score uses Registered. Additional published terms are shown for reference and not counted in the score.. Standard residential M-Series warranty is 5 years parts and 7 years compressor from installation by a licensed HVAC contractor. Enhanced residential terms are 10 years parts and compressor for an owner-occupied residence registered within 90 days of installation, and 12 years parts and compressor when installed in an owner-occupied residence by a Diamond Contractor and registered by that Diamond Contractor within 90 days. The limited warranty statement itself requires licensed-contractor installation and does not state an Internet/resale purchase-channel condition.
Install path: Professional install
Retail price: Installed quote only
Available retailers: not published
Manual links: MUZ-FS NA/NAH engineering data, MSZ-FS06-18NA installation manual, METUS Residential M-Series, P-Series and SMART MULTI Limited Warranty Statement, MSZ-FS06-18NA indoor service manual, MUZ-FS NA/NAH outdoor service manual, MSZ-FS12NA & MUZ-FS12NAH submittal
Specification sheet: MSZ-FS12NA & MUZ-FS12NAH submittal
Last sourced date: Jul 20, 2026

Parts and filters

Fits Mitsubishi Electric M-Series FS 12k 230V (MSZ-FS12NA / MUZ-FS12NAH). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

filter-anti-allergy

Mitsubishi electro static anti-allergy enzyme filter

Fits: Mitsubishi Electric M-Series FS 12k 230V (MSZ-FS12NA / MUZ-FS12NAH)
OEM part number: MAC-2330FT-E
Filter care: Replace every year; vacuum every 3 months in between; if dirt remains, soak and rinse in lukewarm water, then shade-dry.
Fit note: Fits MSZ-FS12NA / MUZ-FS12NAH. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source: Mitsubishi Electric MSZ-FS06NA / MUZ-FS06NAH Submittal, INDOOR UNIT ACCESSORIES: MSZ-FS06NA, page p. 4 (Electro Static Anti-allergy Enzyme Filter MAC-2330FT-E)

filter-deodorizing
