Mitsubishi M-Series PEAD Horizontal Ducted 12k Concealed Ducted 208/230V Mini-Split

Certified capacity
12,000 BTU/h[2]
SEER2
19.7 SEER2[2]
Heating floor
-4 F[1]
Voltage
230 V[1]
Install path
Professional install

The M-Series PEAD Horizontal Ducted 12k is Mitsubishi's concealed-ducted route for hiding the indoor unit above a ceiling and feeding one room or a small zone through short ducts. It certifies at 12,000 BTU cooling with 15,000 BTU of 47F heat. The standard outdoor unit favors efficiency and moderate-climate balance, with SEER2 19.7, EER2 12.5, HSPF2 9.7, and 7,800 BTU at 5F.

The catch is duct design: SEER2 19.7 and HSPF2 9.7 are certified for this exact pairing, but a cramped return, high static pressure, or inaccessible service panel can make a ducted mini-split feel worse than the numbers suggest.

1 zoneProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

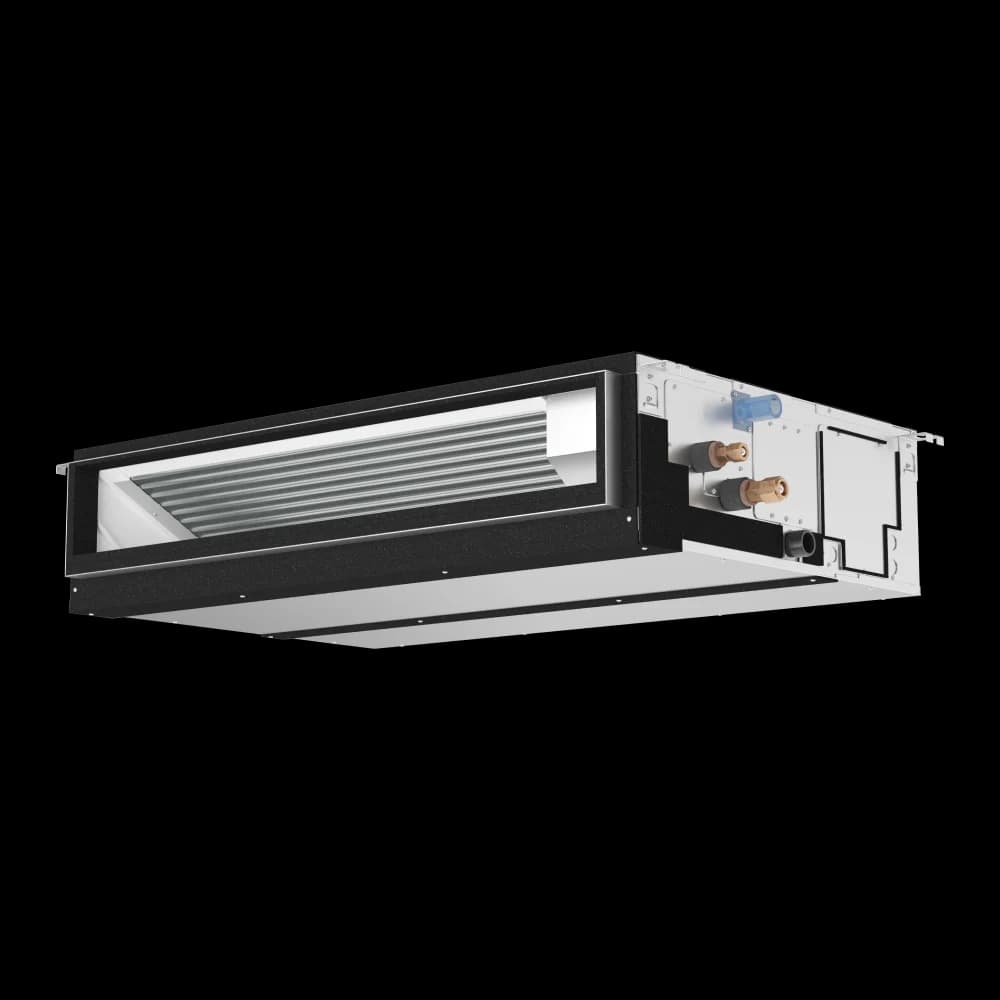

Mitsubishi Electric horizontal ducted indoor unit for a PEAD system.

Image: Mitsubishi Pro official product API

Data completeness: 100%
Last sourced
Aug 5, 2026

SplitAtlas score

7.5 / 10

Methodology
Cooling efficiencyBelow average

(19.7 SEER2) among 12k systems

Heating efficiencyAbove average

(9.7 HSPF2) among 12k systems

Cold-weather performanceBottom quartile

(52% heat retained at 5F; -4 F heating floor) among 12k systems

NoiseBottom quartile

(27 dBA indoor min / 51 dBA outdoor) among 12k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setBottom quartile

(3 verified features) across the catalogue

Documentation & partsBelow average

(6 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

12,000BTU/h[2]

Rated heating

15,000BTU/h[2]

Best-fit use cases

Primary rooms, suites, and small ducted zones around 400-600 sq ft where the owner wants the indoor unit hidden and has space for proper ductwork.

Buyer review snapshot

Install difficulty

Professional install
  • Electrical: 230V; MCA 14 A; breaker/fuse 23 A.
  • Line set: connection type not sourced; precharged 65 ft; max 65 ft.

Alternatives

Availability and price context

We could not verify a current retail price for this model. Mitsubishi Electric sells through dealers, so we link to contractor quotes rather than a retail price.

Source date

Model data sourced
Aug 5, 2026
Page reviewed
Aug 2, 2026
Source-backed records
3
Newest source retrieved
Aug 5, 2026

Warranty tiers

Warranty: 5 years parts and 7 years compressor as standard.

Review methodology

Model context

Mitsubishi dealer channel
Mitsubishi Electric is dealer-quoted in this catalog; installed price depends on the local contractor, and the brand context is dealer support and reliability reputation.
Install path
This is professional-install equipment; no verified current retail offer is attached.
Installation context
Concealed ducted installs depend on duct layout, static pressure, return-air path, condensate routing, and service access.

Strengths

  • 19.7 SEER2 / 12.5 EER2 / 9.7 HSPF2 certified efficiency.
  • 12,000 BTU hidden ducted capacity without a full central air handler.
  • 9,700 BTU at 17F and 7,800 BTU at 5F give real heating numbers to size against.

Weaknesses

  • Not AHRI cold-climate designated; 5F heat falls to 7,800 BTU, so size carefully in northern winters.

Climate suitability

Minimum heating ambient
-4 F[1]
Rated heating at 5F
7,800 BTU/h[2]
Rated heating at 17F
9,700 BTU/h[2]
Rated heating at 47F
15,000 BTU/h[2]

Specifications

Show
Manufacturer
Mitsubishi Electric
Brand
Mitsubishi Electric
Product line
M-Series PEAD Horizontal Ducted
Model number
PEAD-AA12NL indoor / SUZ-AA12NL-U1 outdoor
Indoor unit model
PEAD-AA12NL
Outdoor unit model
SUZ-AA12NL-U1
Number of zones
1
Max indoor units
not published
Rated cooling capacity
12,000 BTU/h[2]
Rated heating capacity
15,000 BTU/h[2]
Voltage
230 V[1]
MCA
14 A[1]
Maximum fuse or breaker size
23 A[1]
Breaker needed
not published
SEER2
19.7 SEER2[2]
EER2
12.5 EER2[2]
HSPF2 (Region 4)
9.7 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
3.4 COP[1]
COP at 5F
2 COP[2]
Minimum outdoor heating temperature
-4 F[1]
Minimum outdoor cooling temperature
14 F[1]
Maximum outdoor temperature
115 F[1]
Indoor noise range
cooling 27 , 29 , 31 , 34; heating 27 , 29 , 31 , 34[1]
Outdoor noise rating
51 dBA[1]
Indoor weight
58 lb[1]
Outdoor weight
81 lb[1]
Refrigerant
R-454B[1]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 3/8 in suction
Included line-set length
Mitsubishi submittals publish line-size and maximum/precharged piping data; the installing contractor supplies the line set.
Maximum line-set length
65 ft[1]
Max line set per indoor
not published
Maximum elevation difference
40 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
ENERGY STAR certified[2]
AHRI certification number
215734899[2]
Warranty
Standard: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation). METUS residential warranty terms list a standard 5-year parts and 7-year compressor term when installed by a licensed HVAC contractor, with enhanced registered coverage available under program conditions.
Install path
Professional install
Retail price
Mitsubishi Electric sells through dealers, so we link to contractor quotes rather than a retail price.
Available retailers
not published
Manual links
AHRI public detail 215734899, SH_HWE24030_PEAD-AA_NL.pdf, MitsubishiPro product record PEAD-AA12NL, MitsubishiPro product record SUZ-AA12NL, PEAD-AA12NL / SUZ-AA12NL Mitsubishi Electric submittal, METUS Residential M-Series, P-Series and SMART MULTI Limited Warranty Statement
Specification sheet
PEAD-AA12NL / SUZ-AA12NL Mitsubishi Electric submittal
Last sourced date
Aug 5, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
not published
Phase
1[1]
Frequency
60 Hz[1]
MCA
14 A[1]
Breaker needed
not published
Maximum breaker size
23 A[1]
Maximum fuse size
23 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
14 AWG indoor-outdoor[1]

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
3/8 in[1]
Line connection type
not published
Precharged length
65 ft[1]
Included line-set length
Mitsubishi submittals publish line-size and maximum/precharged piping data; the installing contractor supplies the line set.
Maximum line-set length
65 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
35-7/16 x 28-7/8 x 9-7/8 in[1]
Outdoor dimensions
31-1/2 x 11-1/4 x 21-5/8 in[1]
Indoor weight
58 lb[1]
Outdoor weight
81 lb[1]
Drain size
1-1/4 in[1]

Related systems and guides

Frequently asked questions

Can I install the Mitsubishi Electric M-Series PEAD Horizontal Ducted 12,000 BTU R-454B 208/230V (PEAD-AA12NL / SUZ-AA12NL) myself, or do I need a pro?
Mitsubishi Electric M-Series PEAD Horizontal Ducted 12,000 BTU R-454B 208/230V (PEAD-AA12NL / SUZ-AA12NL) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Mitsubishi Electric M-Series PEAD Horizontal Ducted 12,000 BTU R-454B 208/230V (PEAD-AA12NL / SUZ-AA12NL) keep heating in a cold winter?
The manufacturer publishes 7,800 BTU/h of heating output at 5F. Rated heating operation extends down to -4 F. Certified heating efficiency is 9.7 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Mitsubishi Electric M-Series PEAD Horizontal Ducted 12,000 BTU R-454B 208/230V (PEAD-AA12NL / SUZ-AA12NL) need?
Published electrical requirements: 230 V voltage, 14 A minimum circuit ampacity, and 23 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 65 ft, and the included line set comes pre-charged for 65 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Mitsubishi Electric M-Series PEAD Horizontal Ducted 12,000 BTU R-454B 208/230V (PEAD-AA12NL / SUZ-AA12NL) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
